Product Description
Small, Fast, Precision

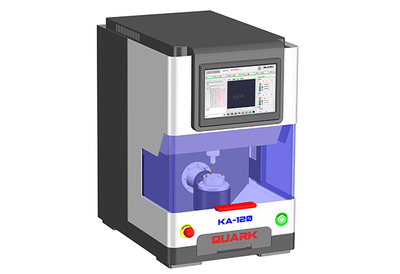

22

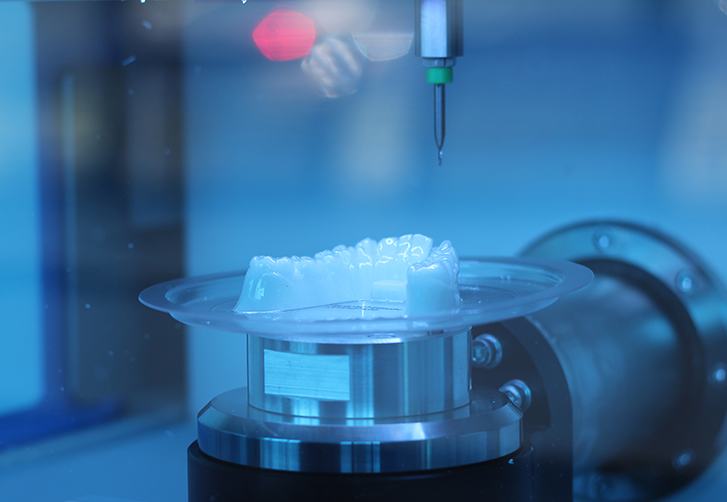

90

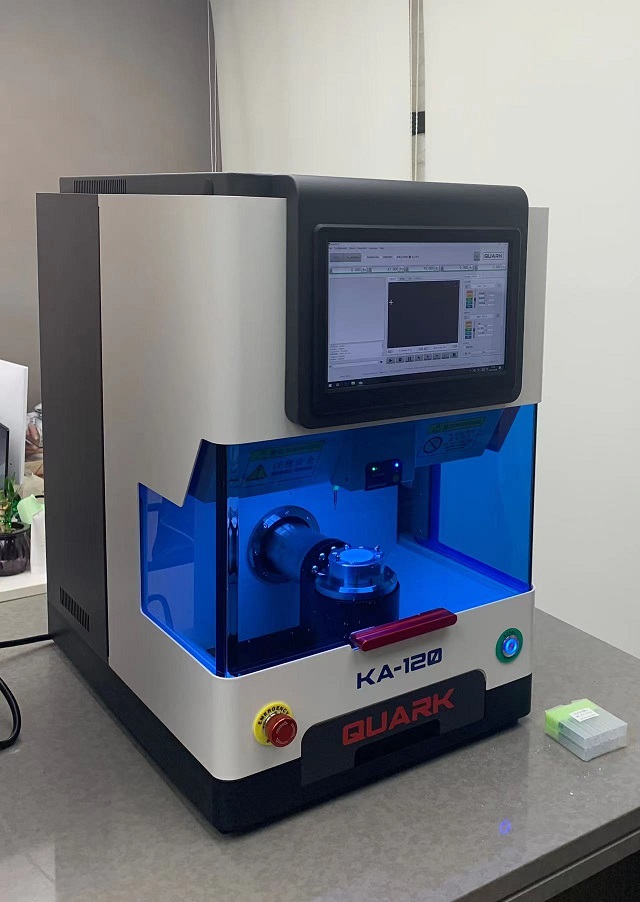

KA120-fuzhou

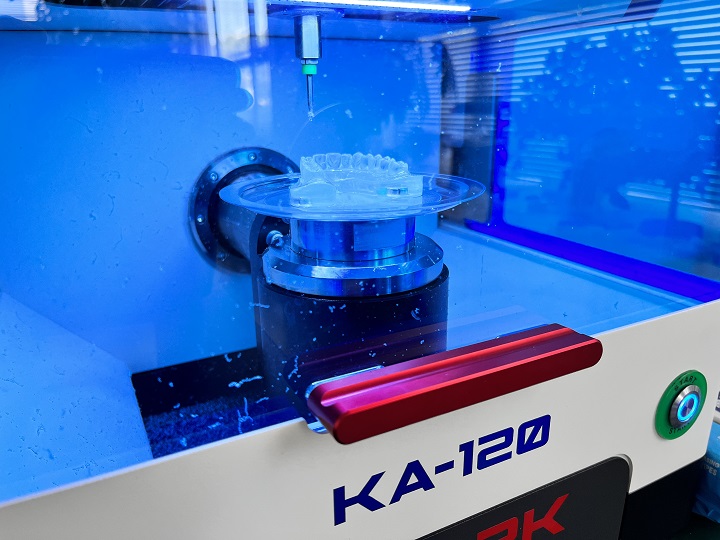

微信图片_20221010143116

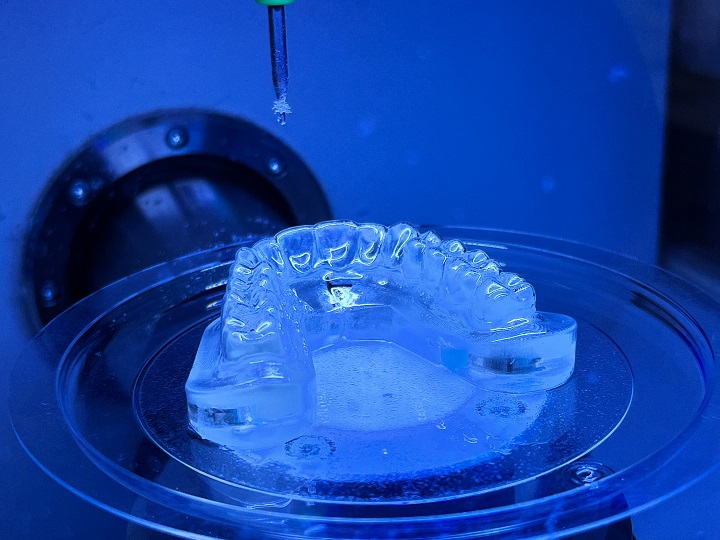

微信图片_20221010143041

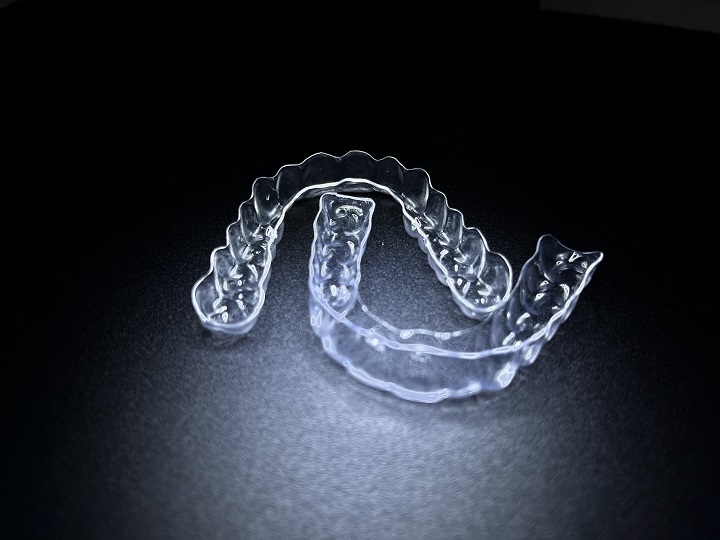

微信图片_20221010143037

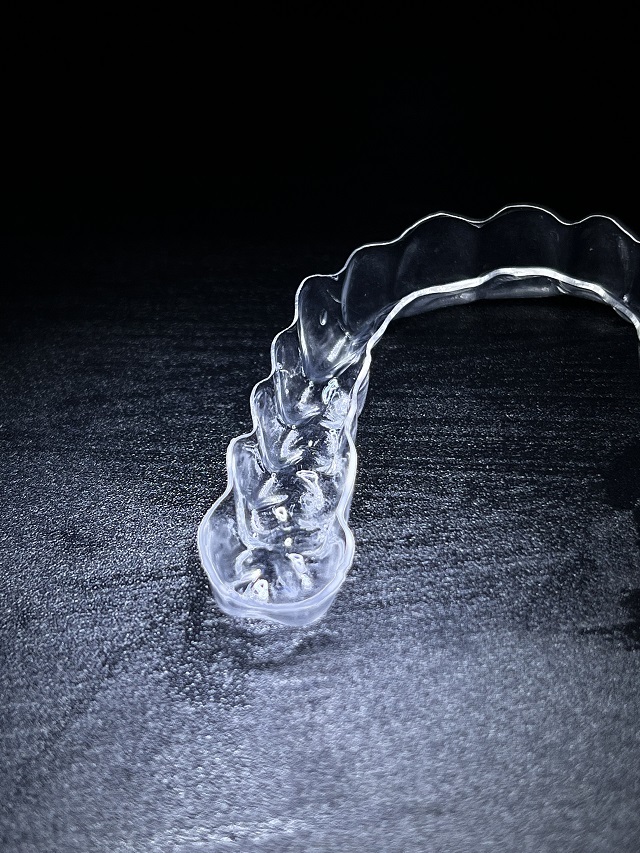

微信图片_20221010143029
KA-120

Specially designed desktop trimming machine for clinic or chair-side orthodontist. KA120 provides a precision, reliable, easy to use and cost effective solution. Desktop size, industrial performance, footprint only 400x568mm. Our CAD/CAM softwareMatchstick is compatible with all planning software and can adapt trimline from other software. Trimming time per aligner is within 30 seconds. No additional CAM software and costs needed, it saves money and time.



KA120 equips with QR code reader.



 Dimensions: 400mm × 568mm × 626mm
Adapter power supply: 230VAC, 50/60Hz
Whole machine weight: ≈110kg
Product video



KA120 trims hook and cutout......



KA120 trims clear aligner even shorter than 30 seconds.

Product Parameter
committed to develop customized machine and software
for Clear Aligner production

1

Spindle Speed 30,000rpm
Spindle Power 400W
Travel, X-axis 180mm
Travel, Y-axis 120mm
Travel, Z-axis 80mm
Travel, B-axis +120°/-40°
Travel, C-axis ±infifinity
Max Axis Speed 4000mm/min
Standard Size Collet 3.175mm
Data Interface USB3.0/RJ-45 Ethernet
Power Input 1.0KW
Power 230VAC，50/60Hz
Air Requirement 120L/min,0.5-0.7Mpa
Size 400×568×626mm
Weight Net ≈110kg
Trimline location and curve can be adjusted by parameters
Accurate, reliable and easy to operate

Drawer for dust
collection

Trimmed hook and
 Cutout
Six Advantages
Professional, safer and dedicated
to our customers

Professional

Professional CNC motion control

Precise

Precise harmonic driver

Stable operation

All products are driven by AC servo motors

User friendly

Convenient, quick and easy to operate

Powerful

High-speed spindle with strong torque

Technical Supports

Remote supports and training
Workflow
Add fixture
Add fixtures on the base in batch
stl file and software provided by us
Trimming line generating
Generate Gcode, pts file and QR code
Software Matchstick provided by us

3D Print model
 Case name or
Labeling
Laser QR code on plastic or
Print QR code on paper and stick it on plastic
Thermoforming
Trimming
QR Code reader scans the code and upload the Gcode
30 seconds
With our patented software matchstick you get

One Click Solution:

Add fixture, find trimline, generate nc file  and QR code fully automatically in batch processing please watch our Youtube Channel: click here













FAQ


FAQ

  • Q What is included in the package?

    A Trimming machine KA120, One Click Solution and Matchstick® software

  • Q How long does it take to trim an aligner？

    A Normally within 30 seconds

  • Q Does the aligner need to be polished after trimming？

    A Very minimal polishing needed after cuts. On a fresh burr, no polishing is needed at all.

  • Q How many aligners can be produced each day?

    A About 300 - 400 pc per day (8 hours)

  • Q Can you provide customized fixture to match different thermoform machines and 3D printer?

    A No, we only design fixtures for KA-200 and match the accuracy of 3D printer. KA-120 and KB-100 must use our standard fixture.
