Product Description
Small, Fast, Precision
2
4
3

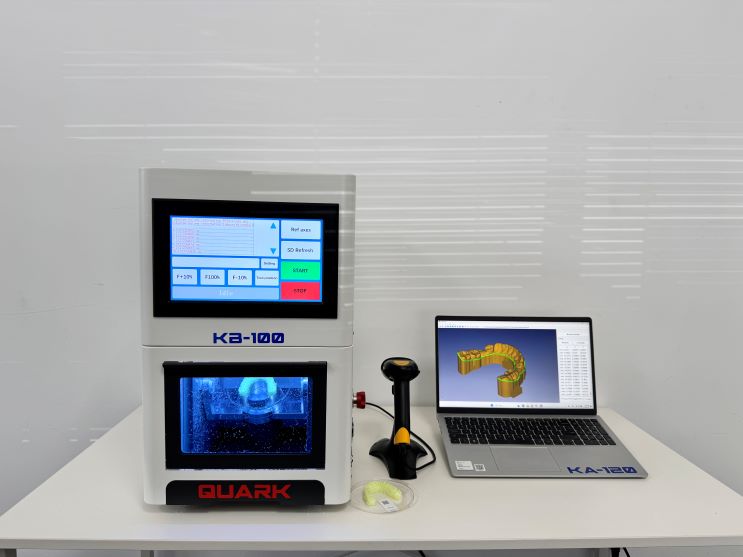

KB-100 with PC1

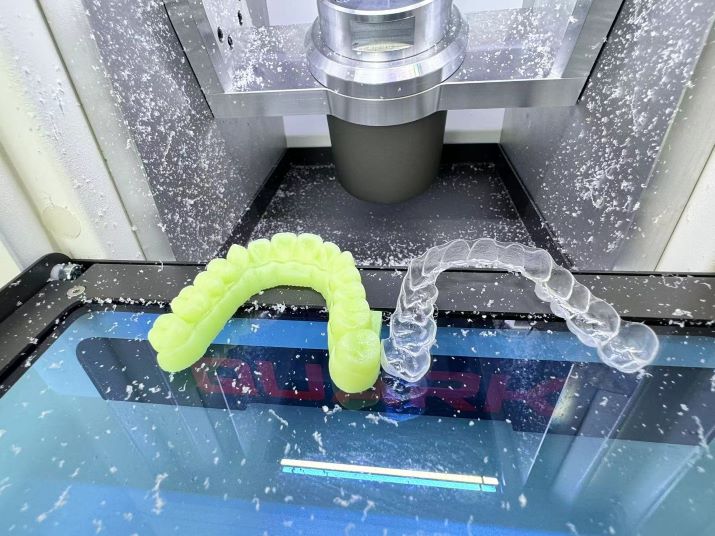

cut sample1

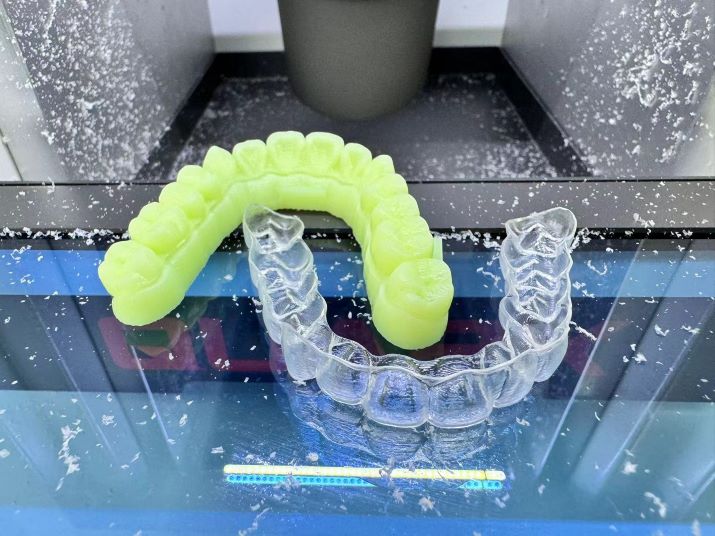

cut sample3

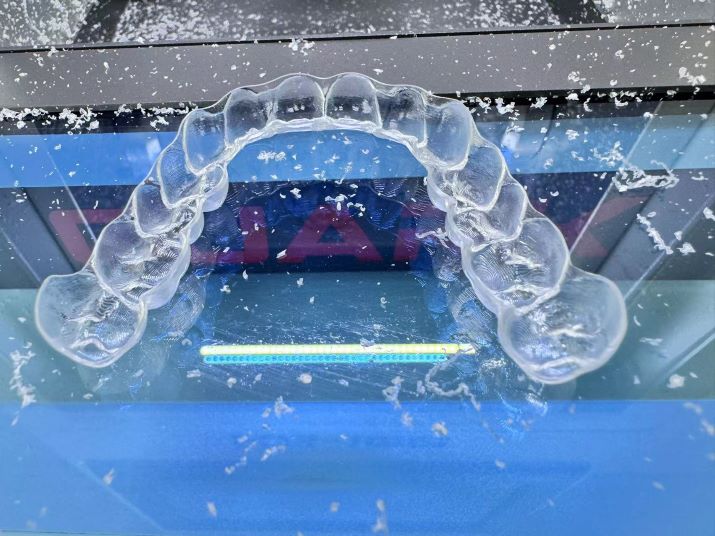

cut sample5

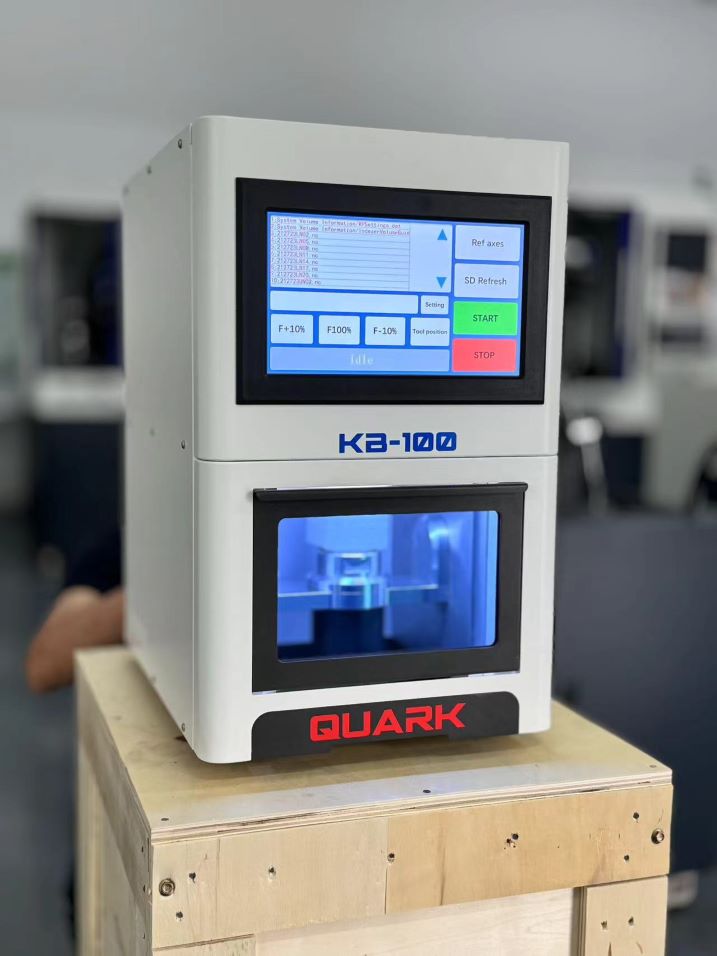

Ready_Exhibition
Desktop Trimming Machine: KB-100

Mini trimming machine KB-100 is the most cost-effective 5 axis machine for clinics and small labs.
- Fast Trim Speed: 25 seconds per model
- Intelligent Software: It works with various treatment plan software and adapts the trimline from them to execute the Gcode in batch process.
- Amazing finishing: Very minimal polishing needed after cuts. On a fresh burr, no polishing is needed at all.
- Versatile: Can process material thickness up to 4mm; aligners, retainers, nightguards, sportsguards etc
- QR Code: Simple and easy integration into your workflow
- No Running Costs: Besides changing the burr, there are no other running costs
- Easy-to-use: friendly interface is easy to operate and no special knowledge required



 Dimensions: 324×457×532mm
Adapter power supply: 230/115VAC，50/60Hz
Whole machine weight: ≈50kg
Product video
Product Parameter
committed to develop customized machine and software
for Clear Aligner production

1

Spindle Speed 24,000rpm
Spindle Power 250W
Travel, X-axis 80mm
Travel, Y-axis 80mm
Travel, Z-axis 80mm
Travel, B-axis +100°/-30°
Travel, C-axis ±infinity
Max Axis Speed 3000mm/min
Standard Size Collet 3.175mm
Data Interface SD/WiFi
Power Input 500W
Power 230/115VAC，50/60Hz
Size 324×457×532mm
Weight Net ≈50kg
Trimline location and curve can be adjusted by parameters
Accurate, reliable and easy to operate

Drawer for dust
collection

Trimmed hook and
 Cutout
Six Advantages
Professional, safer and dedicated
to our customers

Professional

Professional CNC motion control

Precise

Precise harmonic driver

Stable operation

All products are driven by AC servo motors

User friendly

Convenient, quick and easy to operate

Powerful

High-speed spindle with strong torque

Technical Supports

Remote supports and training
Workflow
Add fixture
Add fixtures on the base in batch
stl file and software provided by us
Trimming line generating
Generate Gcode, pts file and QR code
Software Matchstick provided by us

3D Print model
 Case name or
Labeling
Laser QR code on plastic or
Print QR code on paper and stick it on plastic
Thermoforming
Trimming
QR Code reader scans the code and upload the Gcode
30 seconds
With our patented software matchstick you get

One Click Solution:

Add fixture, find trimline, generate nc file  and QR code fully automatically in batch processing please watch our Youtube Channel: click here













FAQ


FAQ

  • Q Does the aligner need to be polished after trimming？

    A Very minimal polishing needed after cuts. On a fresh burr, no polishing is needed at all.

  • Q How many aligners can be produced each day?

    A About 300 pc per day (8 hours)

  • Q Can you provide customized fixture to match different thermoform machines and 3D printer?

    A No, we only design fixtures for KA-200 and match the accuracy of 3D printer. KA-120 and KB-100 must use our standard fixture.

  • Q How long is the tool duration?

    A Depand on the material, the thickness and resin.

  • Q Does KB-100 need vacuum or air compressor?

    A KB-100 doesn't need air compressor or vacuum.
