Product Description
Strong, Robust, Maintenance free
3
3

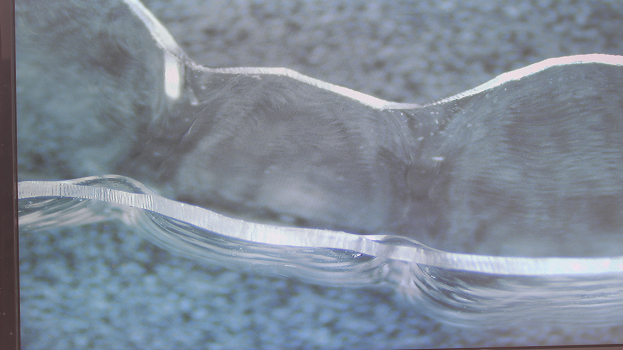

cutting quality KA200-2

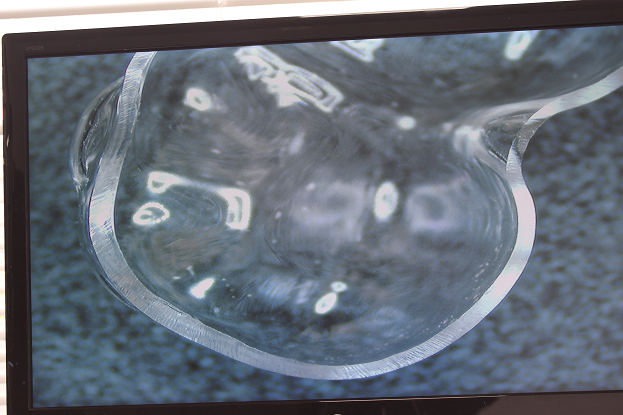

cutting quality KA200-1

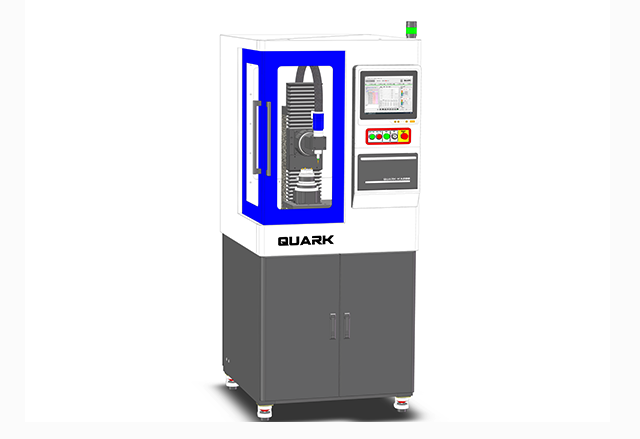

KA-200
Industrial level 5 axis trimming machine for clear aligner and retainer. Granite Machine Structure provides superior damping, thermal stability and accuracy. Daily throughput is over 1000 pc. The machine is ready to work with robotic arm, OCR, Laser mark for maximum achievement. Our CAD/CAM software Matchstick is compatible with all planning software and can use trimline from other software.


 Dimensions: 820mm × 900mm × 1900mm
Adapter power supply: 230VAC，50/60Hz
Whole machine weight: ≈380 kg
Product video
Product Parameter
Committed to develop customized machine and
software for Clear Aligner production.

1

  Travel
  Travel, X-axis   300mm
  Travel, Y-axis   200mm
  Travel, Z-axis   250mm
  Travel, Z-axis   +120°/-40°
  Travel, C-axis   0-360°/±infinity
  Table
  Table Size   280*200mm
  Fixture   Positioning Pin/Vaccum
  Spindle
  Spindle Power   0.25-1.4KW
  Spindle Speed   2000-30000rpm
  Spindle Accuracy   ＜5μm
  Standard Size Collet   3.175mm
  Controller   CNC Control
  Cooling   Air Cooled
  Feed Speed
  Rapid on X/Y/Z   7500mm/min
  Feed X/Y/Z   1-5000mm/min
  Max Speed B/C   30RPM
  Run out B/C   0.01mm
  Repeatability   20 arc sec
  General Requirements
  Data Interface   USB3.0/RJ-45 Ethernet
  Power Input   230VAC,50/60 Hz
  Power   ＜2.0KW
  Air Requirement   120L/min,0.5-0.7Mpa
  Size   860x985x1900mm
  Weight Net   ≈380KG
QR reader
Natural granite structure
700 pc per day (8 hours)
High-quality trimming
Six Advantages
More professional, safer, and more edicated
to serve users

Professional

Professional CNC motion control

Precise

Precise harmonic driver

Stable operation

All products are driven by AC servo motors

User friendly

Convenient, quick and easy to operate

Powerful

High-speed spindle with strong torque

Technical Supports

Remote supports and training
Workflow
Add fixture
Add fixtures on the base in batch
stl file and software provided by us
Trimming line generating
Generate Gcode, pts file and QR code
Software Matchstick provided by us

3D Print model
 Case name or
Labeling
Laser QR code on plastic or
Print QR code on paper and stick it on plastic
Thermoforming
Trimming
QR Code reader scans the code and upload the Gcode
30 seconds
With our patented software matchstick you get

One Click Solution:

Add fixture, find trimming line, generate nc file and QR code fully automatically in batch process, please watch our Youtube Channel: click here



FAQ


  • Q What is included in the package?

    A Trimming machine KA200, One Click Solution and Matchstick® software

  • Q Can the trimming machine KA200 be intergrated in the automatic production line?

    A We are able to integrate KA200 into automatic production line, see please: Automation line for clear aligner - YouTube

  • Q How long does it take to trim an aligner？

    A Normally within 30 seconds.

  • Q Does the aligner need to be polished after trimming？

    A Very minimal polishing needed after cuts. On a fresh burr, no polishing is needed at all.

  • Q How many aligners can be produced each day?

    A About 700 pc per day (8 hours)
