Product Description
Small, Fast, Precision
1
2
3
4
5

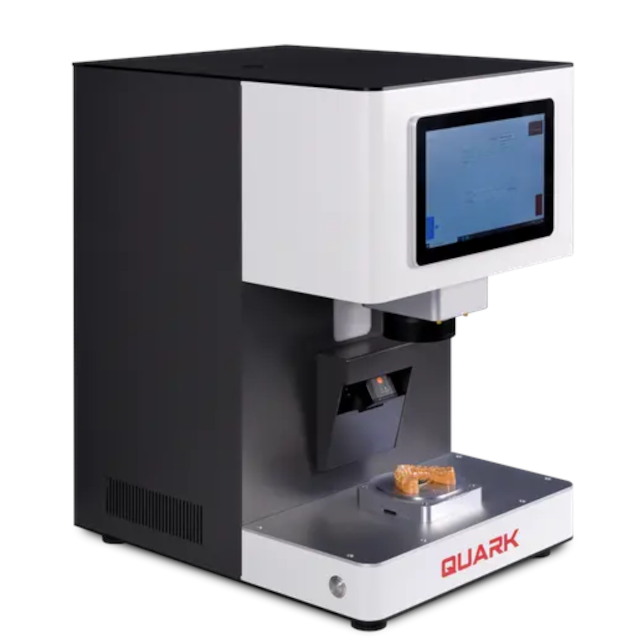

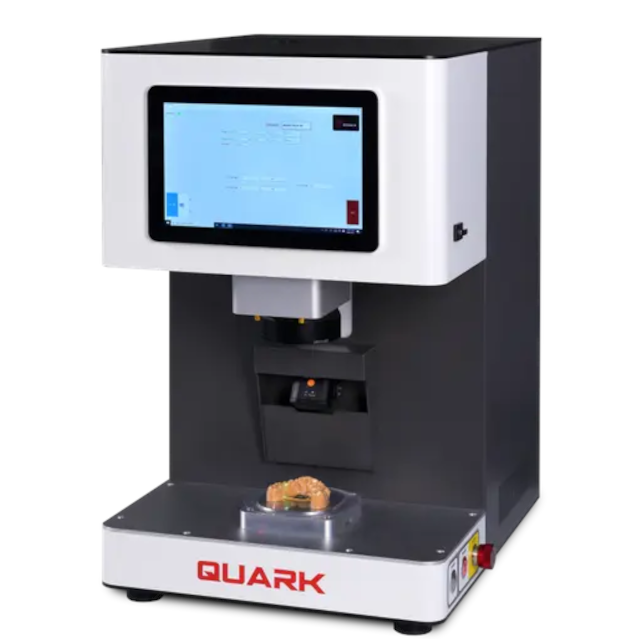

Laser Mark Machine: KD-P20

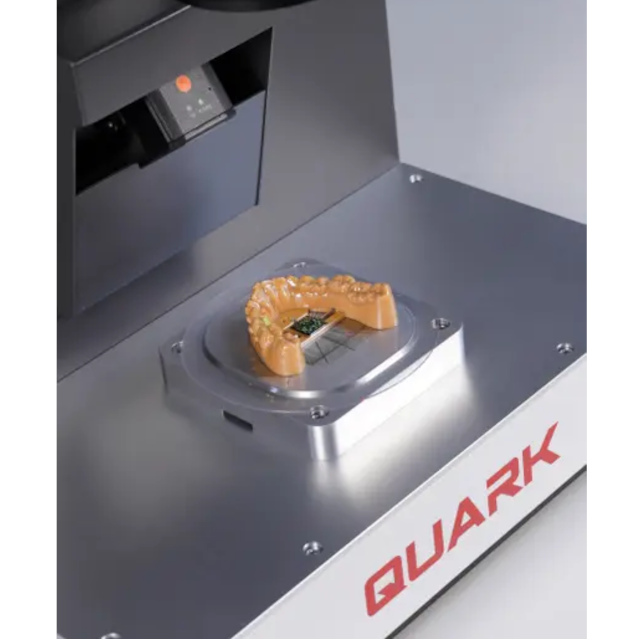

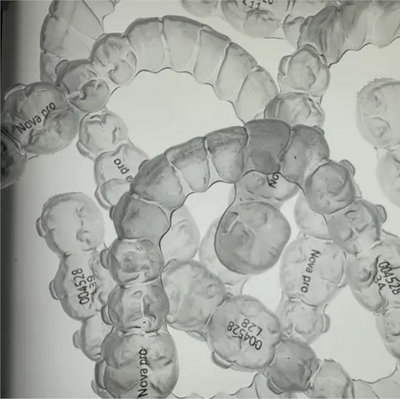

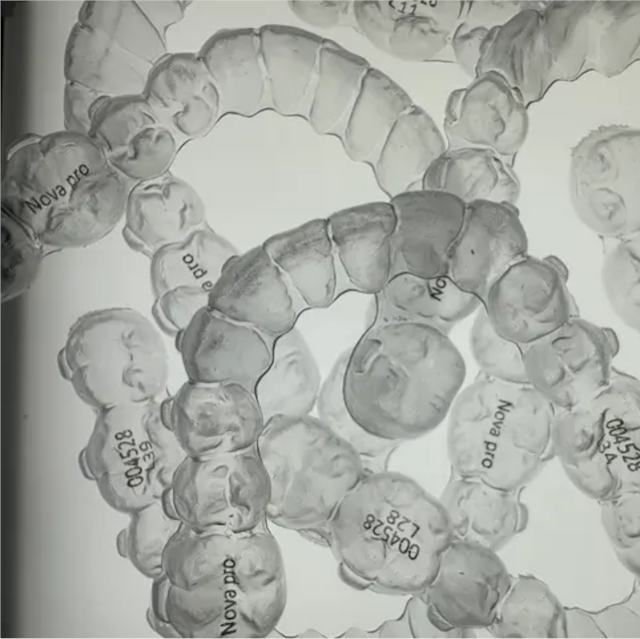

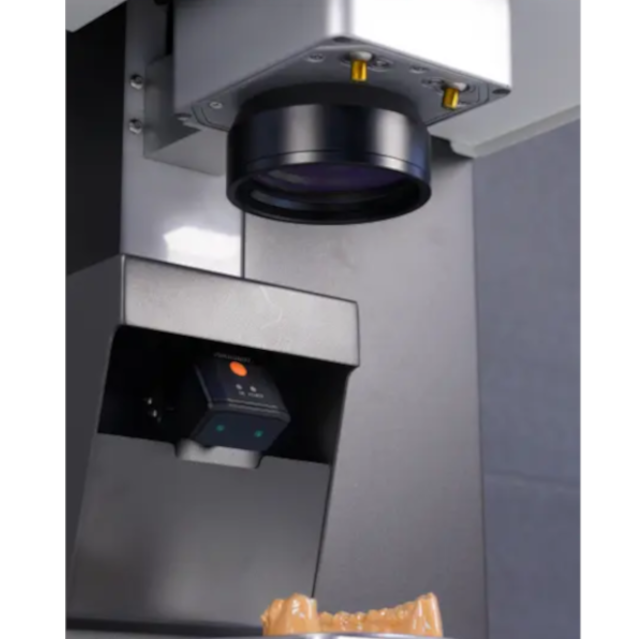

This system is specifically designed for marking clear aligners. It utilizes a code reader to identify the aligner serial number, automatically extracts the laser marking content and coordinate values for each aligner, then adjusts the Z-axis for autofocus. The laser galvanometer adjusts the X and Y-direction beams, while the pulsed laser emits energy to precisely mark customized content onto each uniquely shaped aligner. The entire process for four markings is completed within 3.5 seconds.



 Dimensions: 379×500×638mm
Adapter power supply: 230/115VAC,50/60Hz

Whole machine weight: ≈40
kg
Product video
Product Parameter
committed to develop customized machine and software
for Clear Aligner production

1

Laser System:
Laser Head Fiber or Ultraviolet
Power 20W or 30W
Cooling Air-cooled
High-Speed Scanning Galvanometer:
Marking Speed ≤70,000 mm/s
Marking Range 110mm × 110mm
Minimum Line Width 0.012mm
Repeatability Accuracy ±0.002mm
Industrial Computer
Data Interface USB/Ethernet
Power Input 500W
Power 230/115VAC,50/60Hz
Size 379x500x638mm
Weight Net ≈40kg
Six Advantages

Customize

Fiber or Ultraviolet head to fit the materials

Precise

Accuracy: ±0.002mm

Smart

Read STL name to extract mark content automatically

User friendly

Convenient, quick and easy to operate

Compatible

With back-light compatible with 3D printed QR or sticker

Technical Supports

Remote supports and training
Workflow
With our patented software matchstick you get

One Click Solution:

Add fixture, find trimline, generate nc file  and QR code fully automatically in batch processing please watch our Youtube Channel: click here













FAQ


FAQ

  • Q Does the aligner need to be polished after trimming?

    A Very minimal polishing needed after cuts. On a fresh burr, no polishing is needed at all.
  • Q How many aligners can be produced each day?

    A About 300 pc per day (8 hours)
  • Q Can you provide customized fixture to match different thermoform machines and 3D printer?

    A No, we only design fixtures for KA-200 and match the accuracy of 3D printer. KA-120 and KB-100 must use our standard fixture.
  • Q How long is the tool duration?

    A Depand on the material, the thickness and resin.
  • Q Does KB-100 need vacuum or air compressor?

    A KB-100 doesn't need air compressor or vacuum.
